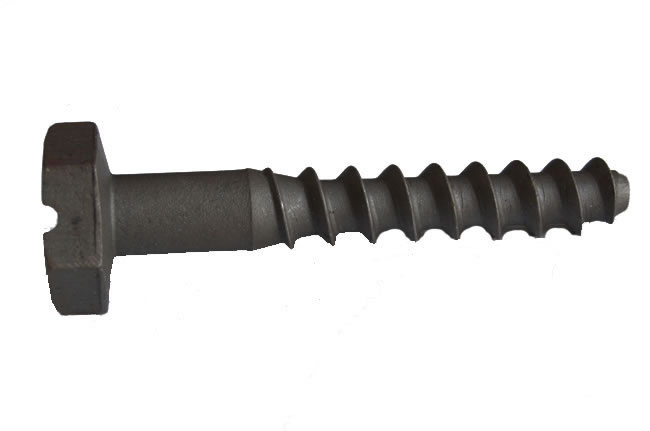

SUYU is engaged in manufacturing and supplying a wide range of rail sleeper screw. Designed with high precision and processed under advanced technologies, these rail railway screw spike are manufactured using high grade raw materials, satisfying all the quality standards. With reliability, robustness and effective performance, these products can be used in railway engineering. railway screw spikespikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the railway screw spikeis used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail railway screw spike.
The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.
SUYU can supply a range of railway screw spikespikes manufactured to international standards according to BS, ASTM and DIN, among others. SUYU has extensive experience in the rail industry and a high level of expertise in this specialized field. SUYU can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.

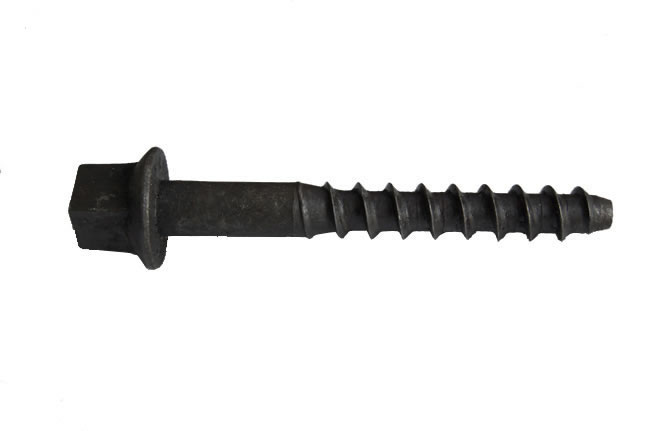

1. Ss series railway screw spikeis according to the standard UIC864-1
Grade: 4.6, 5.6, 8.8
Material: Q235, 35#, 45#
Surface Treatment:Plain (oiled), black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirementType
Dimension (mm)
Weight (Kg)
Ss5-150
M24×150
0.545
Ss8-140
M24×140
0.528
Ss8-150
M24×150
0.548
Ss8-160
M24×160
0.568
Ss23-160
M24×160
0.645
Ss25-165
M24×165
0.625
Ss35-161
M24×160
0.657

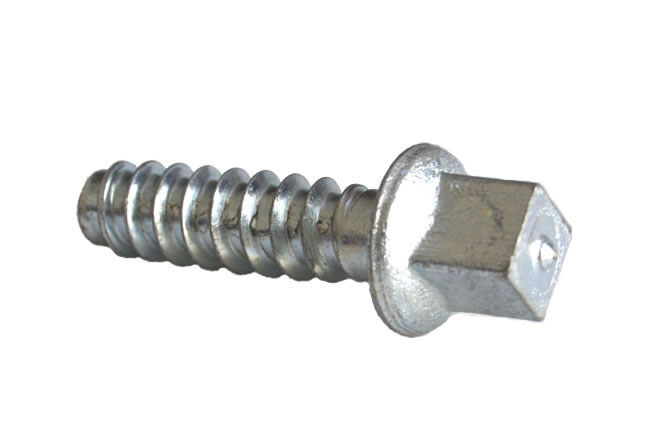

2. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
Grade: 4.6, 5.6
Material: Q235, 35#
Surface Treatment: Plain (oiled), Black painting, Zinc, HDG
MOQ: 5000PCS
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirementType
Dimension(mm)
Weight (Kg)
V20-135
M20×135
0.438
V23-115
M23×115
0.48
V23-135
M23×135
0.55
V23-155
M23×155
0.62
V23-215
M23×215
0.78
V26-115
M26×115
0.55
3. Screw spike for wooden sleeper (high tension screw spike)
Size: 15/16×6-1/2
Surface Treatment: Plain (waxed), Black painting
MOQ: 5000PCS
Packing: 38PCS in 50LB plastic kegHigh Tension Screw Spike
Tensile Strength
Yield Strength
Elongation
Reduction of Area
Hardness
120,000psi(min)
92,000psi(min)
14%(min)
35%(min)
HRC22-HRC32
Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
Material: 45#, heat treatmentBrand
SUYU
Name
Screw Spike
Type
Ss5.-150
V20-135
Ss8-140
V23-115
Ss8-150
V23-135
Ss8-160
V23-155
Ss23-160
V23-215
Ss25.-165
V26-115
Ss35.-161
Or the type by customers’ drawings
Grade
4.6
5.6
8.8
10.9
Material
Q235
35#
45#
40Cr
Mechanical properties
Tensile strength: ≥400Mpa
Tensile strength:≥500Mpa
Tensile strength:≥800Mpa
Tensile strength:≥1000Mpa
Yield strength:≥240Mpa
Yield strength:≥300Mpa
Yield strength:≥640Mpa
Yield strength:≥900Mpa
Elongation:≥22%
Elongation:≥20%
Elongation:≥12%
Elongation:≥9%
Cold bending: 90 degree without crack
Cold bending: 90 degree without crack
Cold bending: 90 degree without crack
Cold bending: 90 degree without crack
Surface
plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers
ISO898-1, UIC864-1, and NF F500-50
25KG double-layer woven bag with fumigation-free wooden pallet.
-
